DJI AGRICULTURAL DRONES & ACCESSORIES
While you can't control Mother Nature, you can say goodbye to waiting on ideal field conditions to spray your crops with the help of Birkey's and DJI Agricultural drones.
Contact your local Precision Farming Specialist today to learn more about DJI Drones and accessories, application, or CLICK HERE to schedule your FREE on-field drone demo.
Contact your local Precision Farming Specialist today to learn more about DJI Drones and accessories, application, or CLICK HERE to schedule your FREE on-field drone demo.

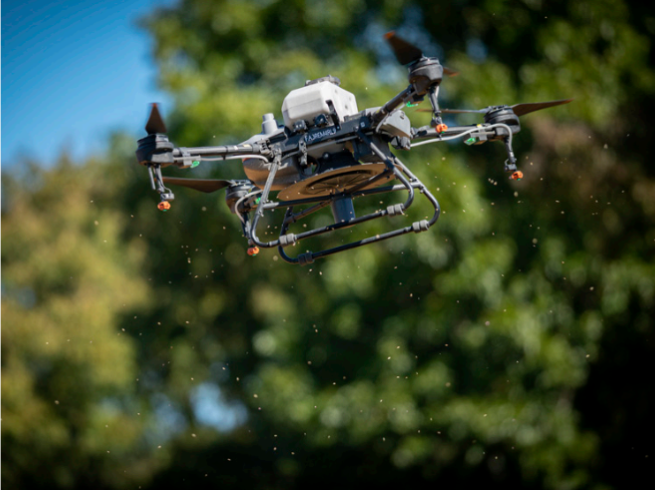

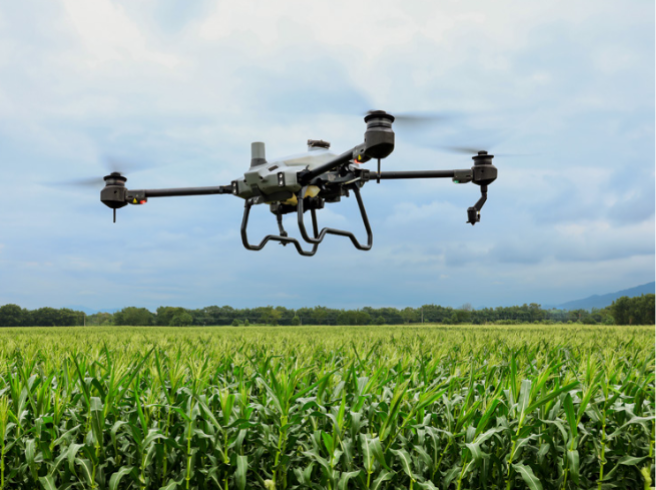

DJI AGRAS T50 Heavy Payload - 10.57 Gal. Liquid Tank; 88.18lbs. Liquid Capacity; 110.23 granular capacity
High Flow Rate - 4.3 GPM Spraying
Leak-Free, Atomized Spray -
• Magnetic drive impeller pump
• NEW solenoid valves ensure leak-free operation
• Atomizing centrifugal spray heads with fully adjustable droplet size
Efficient Spreading - 238.1 lbs./min; Spiral channel disk ensure uniform spreading
Spray, Spread, Map -
• High-Resolution FPV gimbal camera for real-time image collection
• Survey slopes up to 20 degrees
Signal Stability - offline operations with up to 1.24mi O3 Video transmission
Multidirectional Obstacle Sensing -
• Multidirectional obstacle sensing and avoidance with automaticobstacle bypassing
• Front & rear active phased arrayradars & two sets of binocularsensors for superior awareness
• Terrain following of up to 50 degrees
RC Plus Controller - Quad-antenna O3 transmission; 7-inch screen & 8-Core processor
DJI AGRAS T40: Heavy Payload - 10.57 gallon liquid tank
Spray, Spread, Map -
• Unpressurized spray system
• Dual centrifugal spray heads create consistent droplet size while reducing drift
• Magnetic drive impeller pump - yields zero corrosion
• Approximately 30ft spray swath with a 3GPM output
• 40 acres at 2 GPA
• Live level weight scale and empty tank float sensor
• Optional 18.5 gallon spreader tank holds approximately 110 pounds of dry material
• On-board scale system, used in conjunction with the spreader, helps keep rate accurate while displaying live tank weight
• Auto-adjusting spreader gate
• Active phased array omnidirectional radar detects obstacles around the aircraft, aiding in
avoidance and minimizing crashes
• Built-in mapping capabilities
• 12 mega-pixel camera on front gimbal mount
• IPX6 rating throughout the aircraft ensures protection against moisture and dust intrusion
Controller - All new controller with 7” display

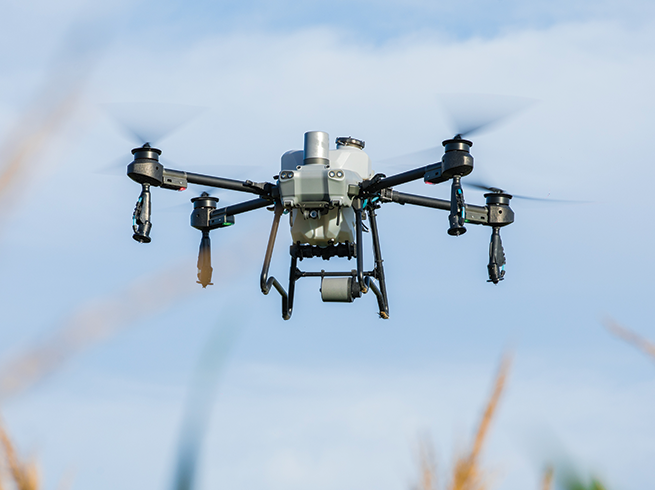

DJI AGRAS T25 Payload - 5.28-gallon liquid tank; 44.09 pounds liquid capacity; 55.12 pounds granular capacity
High Flow Rate - 4.3 GPM Spraying
Leak-Free, Atomized Spray -
• Magnetic drive impeller pump
• NEW solenoid valves ensure leak-free operation
• Atomizing centrifugal spray heads with fully adjustable droplet size
Efficient Spreading - 158.7 lbs./min; Spiral channel disk ensure uniform spreading
Spray, Spread, Map -
• High-Resolution FPV gimbal camera for real-time image collection
• Survey slopes up to 20 degrees
Signal Stability - offline operations with up to 1.24mi O3 Video transmission
Multidirectional Obstacle Sensing -
• Multidirectional obstacle sensing and avoidance with automatic obstacle bypassing
• Front & rear active phased arrayradars & two sets of binocularsensors for superior awareness
• Terrain following of up to 50 degrees
RC Plus Controller - Quad-antenna O3 transmission; 7-inch screen & 8-Core processor
DJI AGRAS T20P • 5.3 gallon liquid tank
• Dual atomized centrifugal spray heads
• Magnetic drive impeller pump - yields zero corrosion
• 23 foot spray swath
• Can spray up to 27 acres per hour
• 55 pound dry material spreader
• Can spread up to 1 ton per hour
• Active phased array radar and binocular vision aid in obstacle detection and avoidance
• IPX6K rating throughout the aircraft ensures the T20P is protected against moisture and dust intrusion, increasing durability
• Autonomous mission planning makes the T20P efficient and easy to fly, even for novice pilots
DJI AGRAS T10: Payload - 2.64 gallon liquid tank; holds approximately 20 pounds of dry material with a spreading
width of up to 23 feet
Spray, Spread, Map -
• Electromagnetic flow meter ensures even and accurate spraying
• TeeJet tips allow a 16-foot swath
• Up to 15 acres per hour at 2 GPA and 20 acres per hour at 1 GPA
• Anti-rotation sensor assists with accurate refill alerts when using solid spreader system
• Industry leading 360° spherical radar detects objects in any direction around the aircraft, aiding
in avoidance and minimizing crashes
• IP67 rating throughout the aircraft ensures protection against moisture and dust intrusion,
increasing the aircraft’s durability
Autonomous mission planning makes the T10 efficient and easy to operate, even for novice pilots

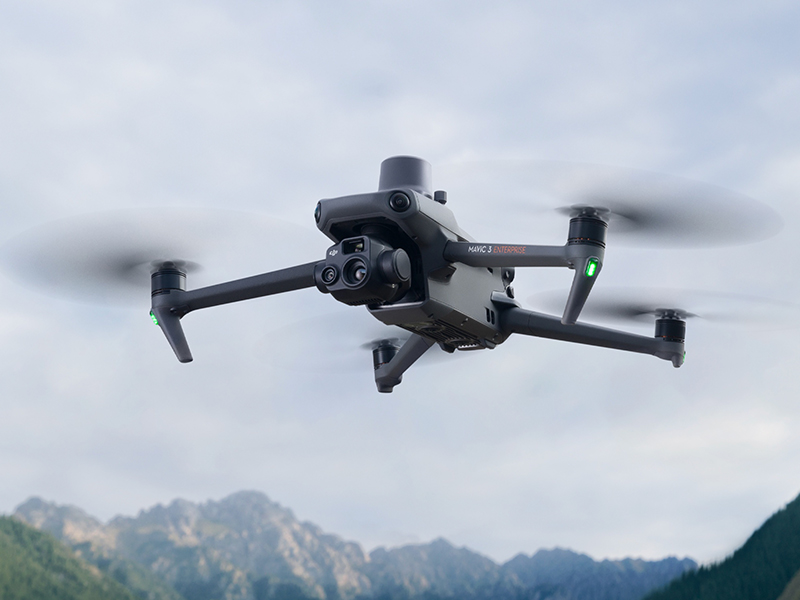

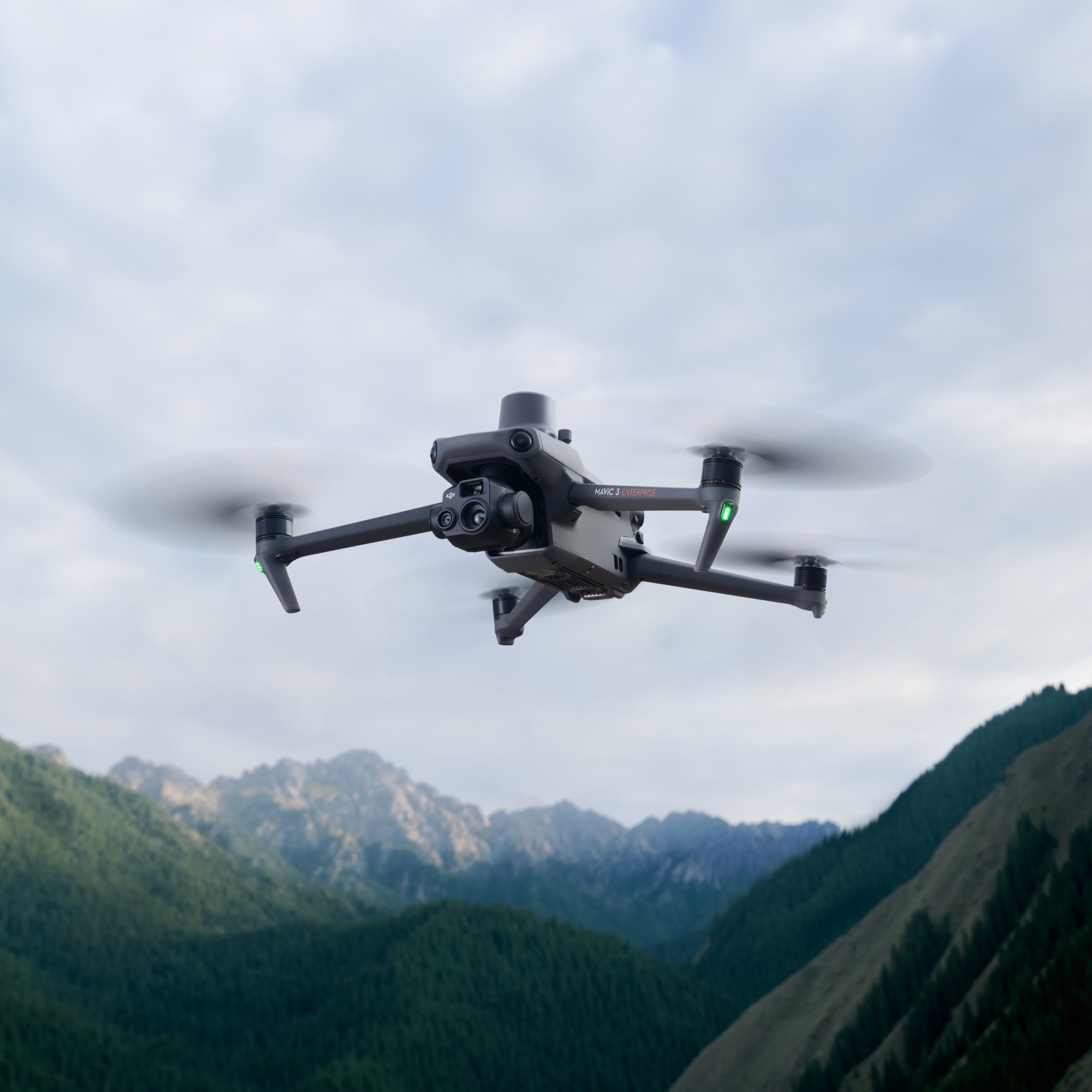

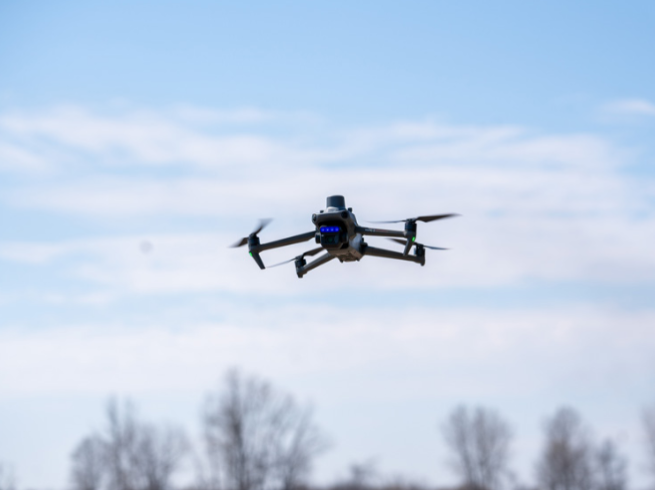

DJI MAVIC 3 THERMAL • Standard 12 MP zoom with up to 56x max hybrid zoom
• Thermal camera sports a 640 x 512 resolution and supports:
• Point temperature measurement
• Area temperature measurement
• High temperature alerts
• Color palettes
• Isotherms
• Use both zoom and thermal cameras simulataneously with up to 28x continuous side-by-side zoom.
• Uses the same batteries as the 3M (Multispectral), providing up to 45 minutes of flight time.
• Full obstacle avoidance and route mapping are available with the DJI RC Pro remote controller
DJI MAVIC 3 MULTISPECTRAL: • Multispectral imaging system including:
• Green (G): 560 nm ± 16 nm
• Red (R): 650 nm ± 20 nm
• Red Edge (RE): 730 ± 20 nm
• Near-Infrared (NIR): 860 nm ± 26 nm
• RGB camera is equipped with a 4/3 format CMOS sensor rated at 20 megapixels and incorporates a mechanical shutter with max speed of 1/2000 second
• Includes RTK module that achieves sub-inch level accuracy positioning
• Paired with advanced 3rd party software, ability to map field boundaries and scout fields with NDVI imaging and stand counts in-season
• Extended battery life of up to 43 minutes allows approximately .77 square miles in a single flight.

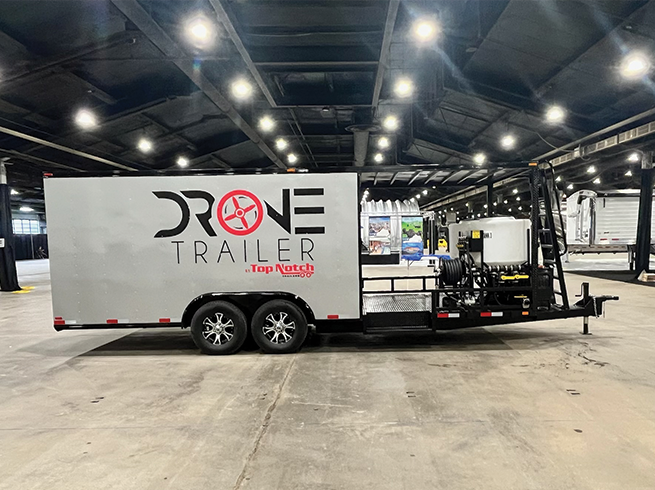

TOP NOTCH DT1 DRONE TRAILER: Standard Features:
• 20’ trailer with 8’ open station on the front, 12’ enclosed box at the rear
• Rear ramp door
• Full 20’ walk-on roof w/ladder
• 7,000lb axles
• 14ply tires
• 2”x6” box tubing frame
• 5” c channel tongue
Options:
• Aluminum wheels
• Roof A/C
• Rough rubber floor covering
• Gooseneck-style hitch
• Length and height extensions

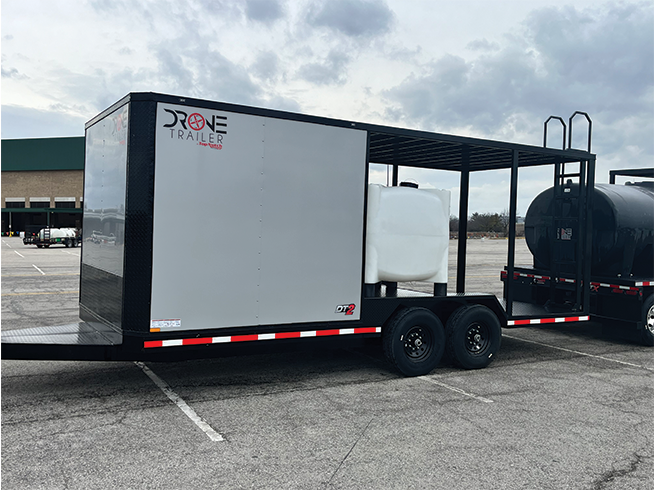

Top Notch DT2 Drone Trailer: Standard Features:
• 20’ trailer with 8’ flat-nose or V-nose box at the front, 12’ open station at the rear
• 4’ side walk-in door
• Full 20’ walk-on roof w/ladder
• 7,000lb axles
• 14ply tires
• 2”x6” box tubing frame
• 6”c channel tongue
Options:
• Aluminum wheels
• Roof A/C
• Rough rubber floor covering
• Length and height extensions
• Fold-down roof railing

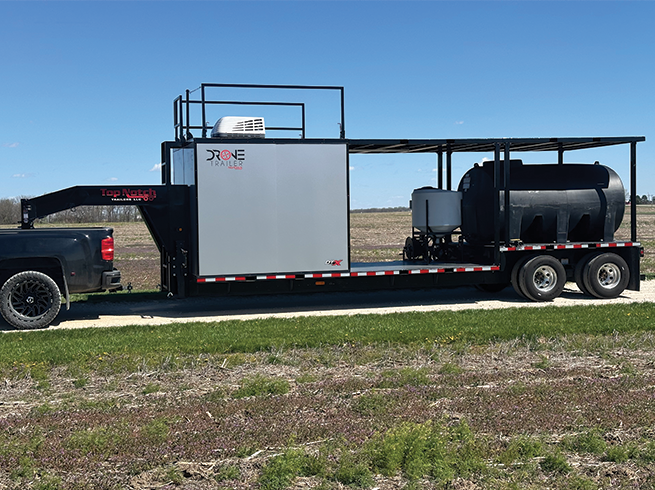

Top Notch DTX Drone Trailer: Standard Features:
• 25’ trailer with 8’ removable box w/ electrical package
• 8.5’ removable work station
• 8.5’ removable tank platform
• 16’ walk-on roof w/ladder
• 10,000lb axles
• 14 ply tires
• 48” & 32” walk-in doors
• I-beam chassis
• Steel wheels
• Gooseneck hitch
• 1200 gallon tank
• 100 gallon tank
• 19GPM pump
• Hose & reel
• Misc. valves & fittings
Options:
• Aluminum wheels
• 8.5 walk-on roof over tank
• Seed blower/platform
• Roof A/C
• Fold-down roof railing
